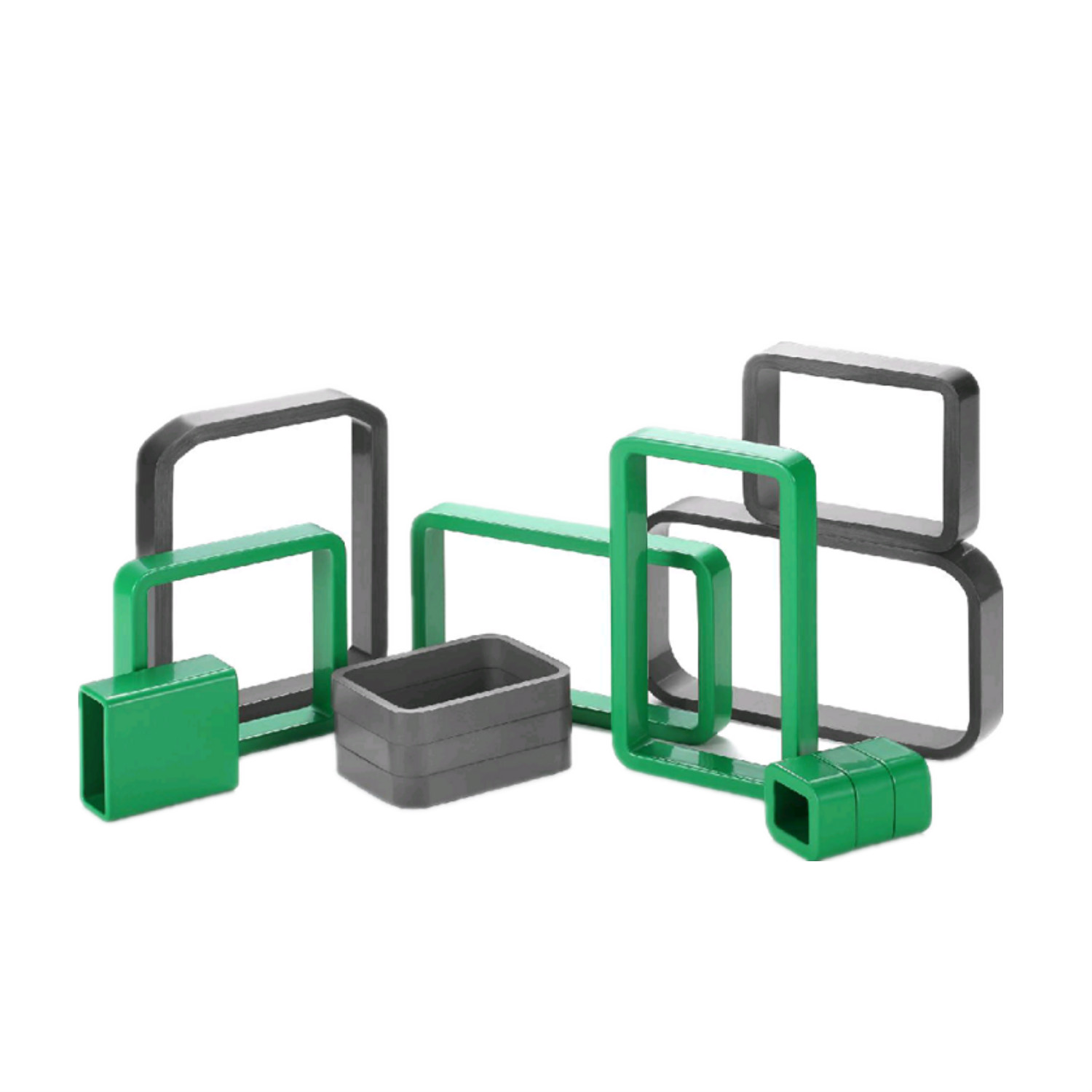

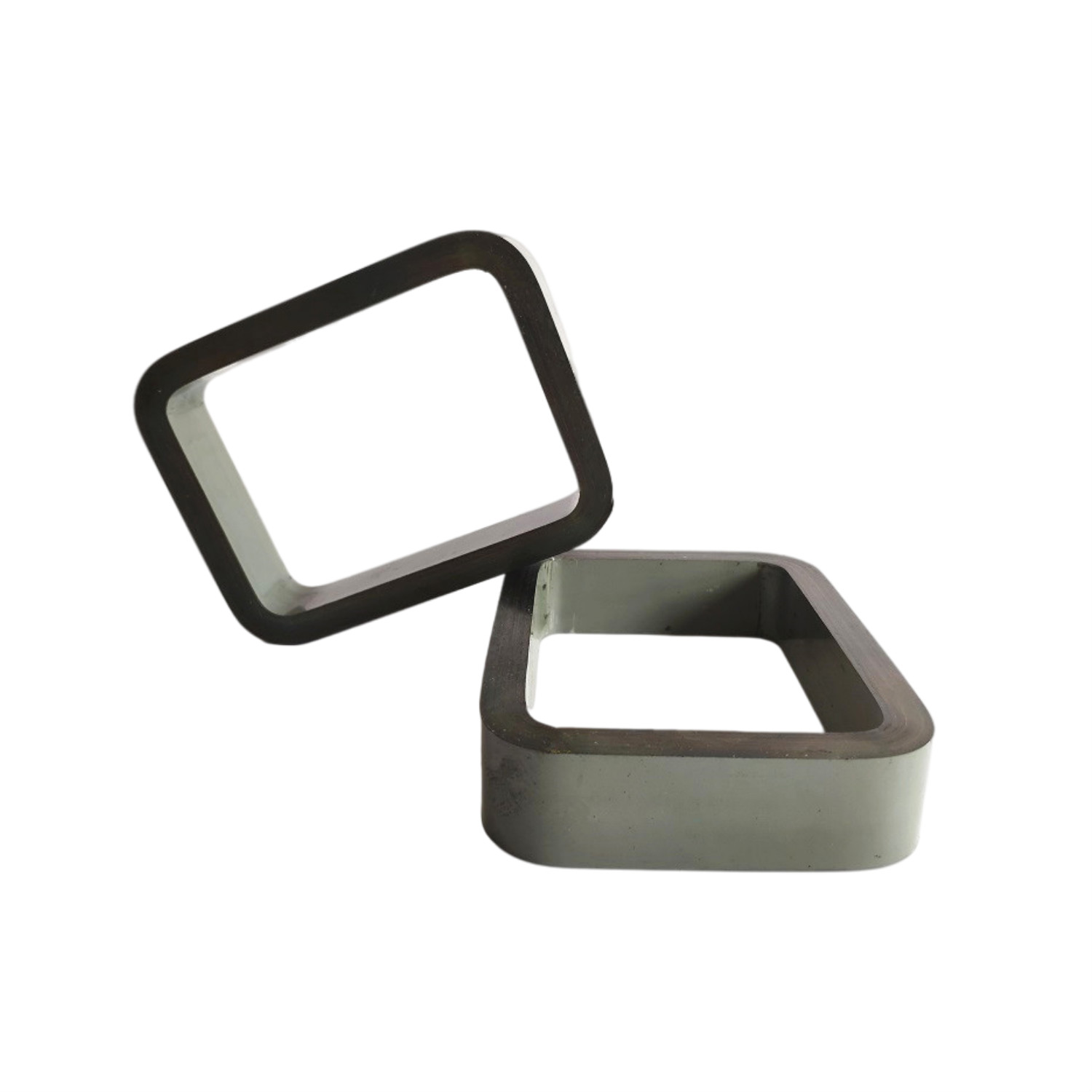

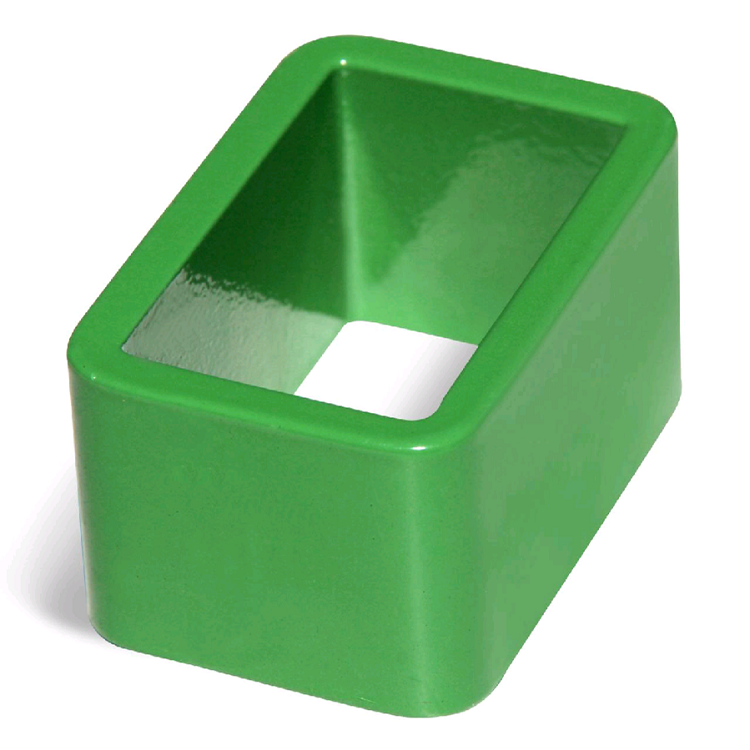

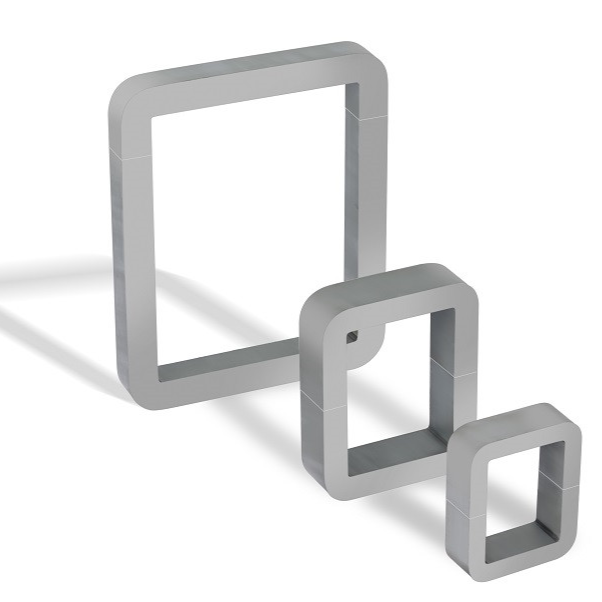

大功率高频主变铁芯（Transformer Cores）
产品应用 Application
产品特点 Characteristic
—低损耗 Low Core Loss
纳米晶C型铁芯与其他磁性金属材料制成的铁芯相比具有更低的损耗。
Nanocrystalline C-Cores have much lower core loss than those made of other magnetic metallic materials.
—小体积 Small Volume
由于纳米晶材料具有高的饱和磁密（Bs=1.25T）和低损耗特性，纳米晶C型铁芯可设定在高磁通密度下工作，满足小型化设计。
Nanocrystalline C-Cores allow designing applications with high operation flux density due to high saturation fluxdensity (Bs=1.25T) and lower loss property,meeting miniaturization design.
—高耐热性 High Operation Temperature
纳米晶C型铁芯可以在F级绝缘等级（155℃）下工作。
Nanocrystalline C-Cores can be used in class F insulation grade（155℃）.
使用温度范围：-20~+155℃(包含自身温升)
Operating temperature: -20~+155℃(including self temperature rise)
·工业电源：X射线CT高频变压器、感应加热设备、焊接机、通信设备、静电除尘电源、ESP等
Industrial Power:High frequency transformers for X-ray CT, induction heating apparatus, welding machine, communication equipment, electrostatic precipitators and its power supply, etc.
·新能源：光伏、风力发电机、燃料电池中的功率调节器
New Energy:Inductors (choke coils) for power conditioner of photovoltaic, wind power generator, fuel cell.
·电动汽车和5G通讯：混合动力汽车、燃料电池汽车、转换器、UPS等中的升/降压转换器
EV & 5G:Inductors for boost/down converter of HEV, FCV, UPS,etc.
·漏电保护开关（Leakage protection switch）

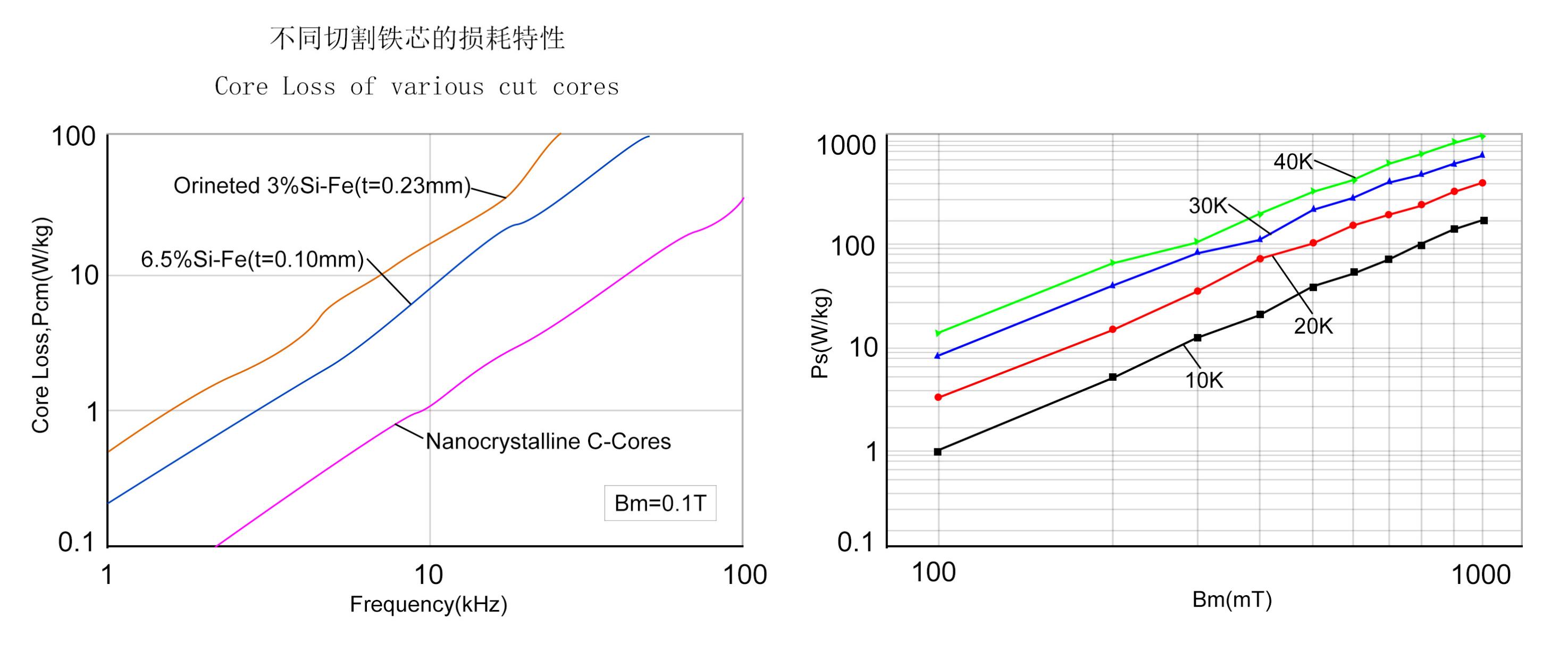

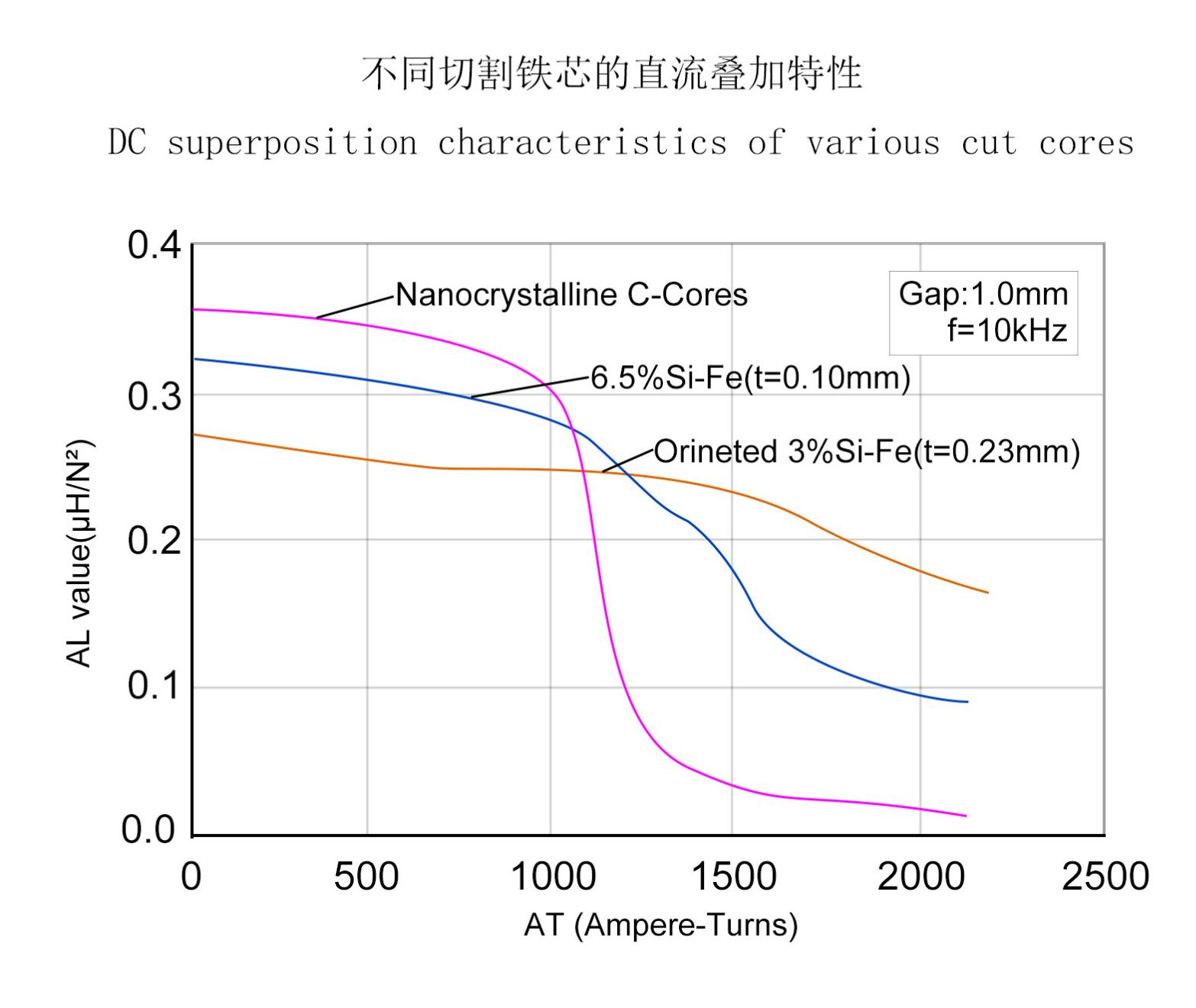

产品特性 Properties
定制服务 OEM Service
更多产品信息请联系我们,支持定制,欢迎索样.
OEM servise are warmly welcome. Sample Quantity supported. Project Design Supported.
